3. E386 Complete Package + Options

$6,928.90 – $7,588.90 AUD

The prices are listed in Australian Dollars, Gst Inclusive and will automatically update based on the current USD exchange rate.

This ‘standard’ package includes a completely flight tested airframe, 3D Robotics Pixhawk flight controller with custom reverse thrust algorithm,  laser rangefinder, 10km telemetry,  quanum handheld remote controller, 1 year subscription to Drone Data Management System (DDMS – Professional Tier), 1 fight battery, a charger, standard warranty and downloadable mission planning software. It does not include a camera, camera mount, the custom wiring to connect the pixhawk, a ground station PC or a carry case but you can select these as an ‘add on’ below.

The shipping cost, which are calculated at the end, include transport from the USA, Australian Custom Duty and AQIS Entry Charges.

You can add to the ‘standard package’ by selecting the options below.

Clear selection

  • Surveying/Mapping Cameras

    • 499 $
    • 1199 $

    Survey/Mapping and NDVI Package

    • 1200 $
    • 1900 $

    Special Purpose Sensors

    • 699 $
    • 3799 $
    • 5899 $
    • 2490 $
    • 3990 $

    Telementry

    • 0 $

    Strobes - Wing Tips & Fuselage

    • 0 $

    Extra Flight Batteries

    • 0 $

    Post Processing

    • 0 $

    Warranty

    • $
SKU: N/A Category:

Description

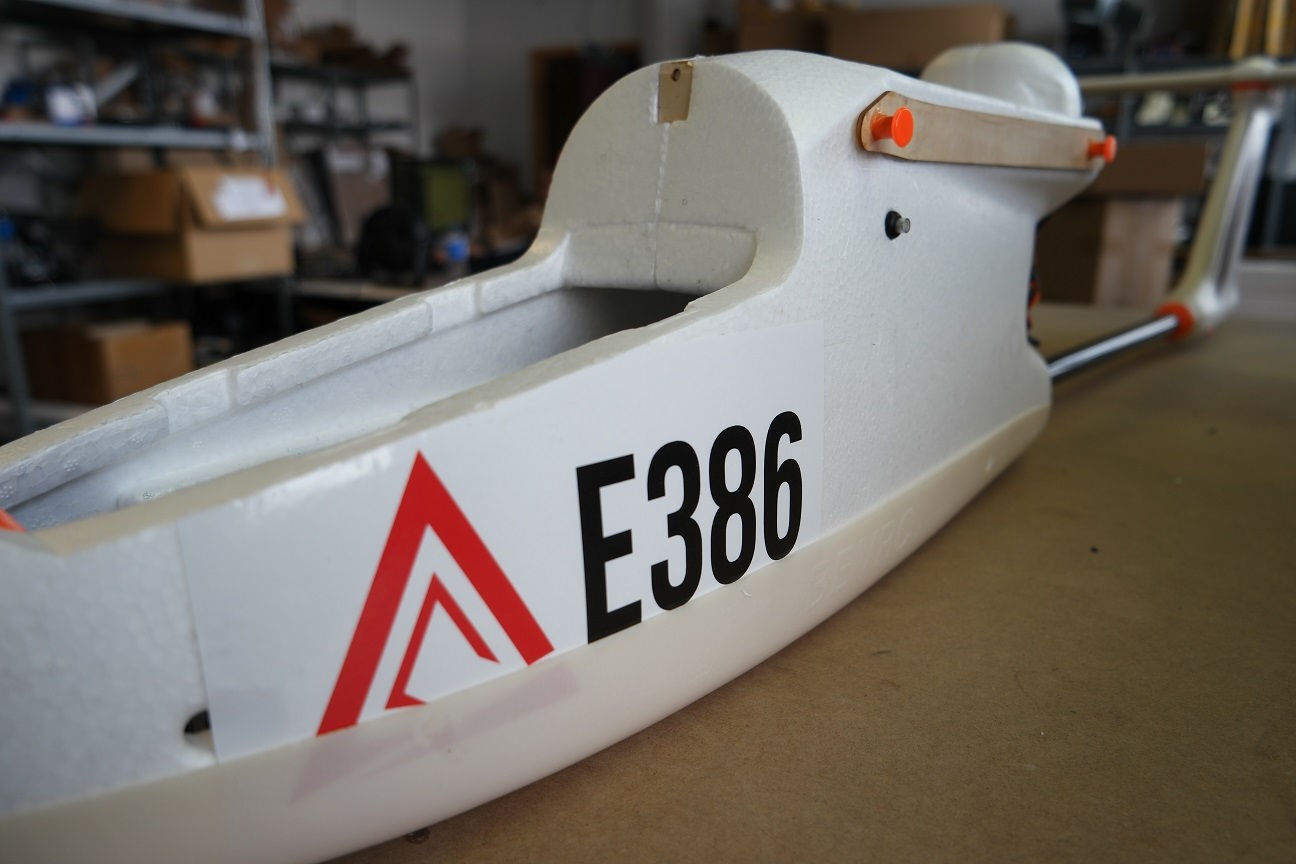

The E386 Fixed Wing Drone is a portable, long endurance mapping drone with short field take-off and landing capability. The E386 makes it easy to collect large high resolution maps. Everything from mission planning to image tagging has been streamlined for this purpose. No separate launch or recovery equipment needed.

Specifications:

  • Dimensions: 190cm Wingspan, 130cm Length (75 x 51 inches)
    • Wings and body disassemble for easy transport
  • Weight: 2.75kg (6.0 lbs)
  • Endurance: 75 minutes flight time with WX500 camera.
  • Cruise Speed: 13m/s (29 mph)
  • Range: 58km (36 miles)
    • Map up to 700 geo-referenced acres per flight at 5.0cm/pixel resolution (280 Ha)
  • Payload: 500g (1.1 lbs)
    • Automatic lens protection for landing
  • Complete mission planning and operations software
    • For your Windows 7 or 8 laptop (not included)
    • Autonomous flight, Return-to-launch, Automated pre-flight checklist
  • Complete operating instructions
  • Operating Conditions
    • MSL Ceiling: 3,960 meters, (13,000 ft), – auto take-off tested to 3,100 meters, (10,000 ft)
    • Max wind speed: 10 m/sec, (22 mph) for autonomous operation
    • Telemetry Range: 10km from ground station to aircraft, (6.2 mi)



Package Includes:

  • Complete, Flight Tested Autonomous E386 Drone

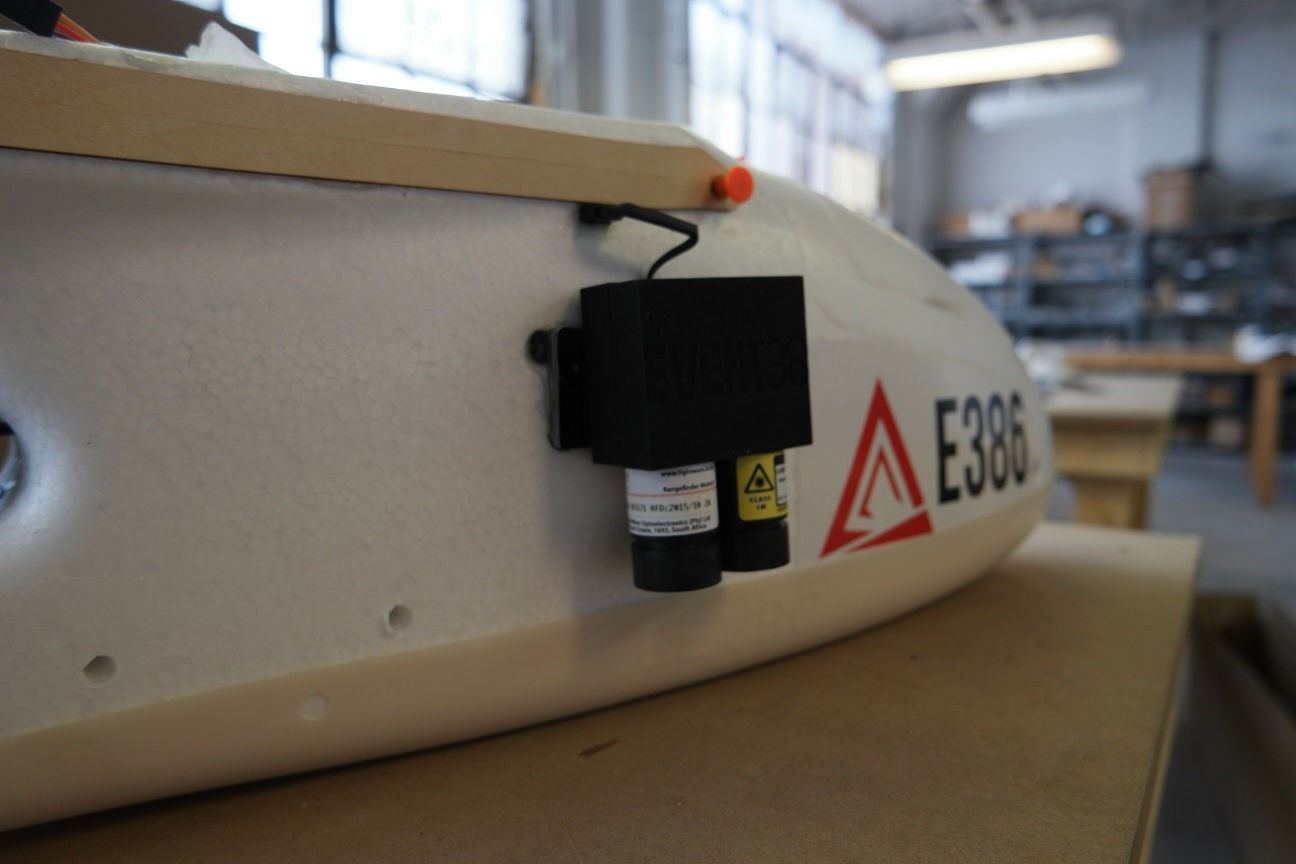

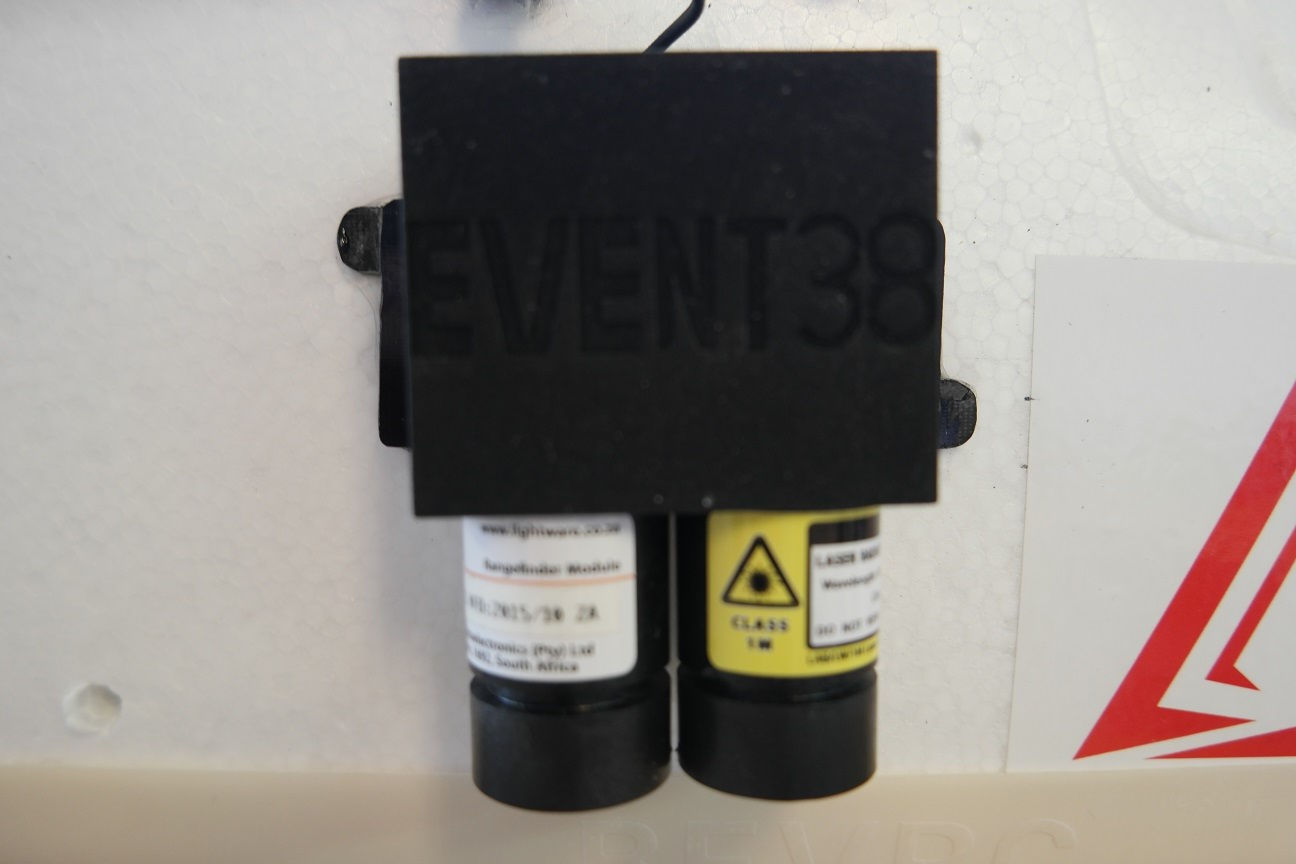

  • Powered by 3D Robotics Pixhawk Flight Controller with laser rangefinder and reverse thrust capability
  • Long Range (10km) Ground Station Monitoring and Command Radio
  • 1 Year Subscription to the Drone Data Management System™ Professional Tier
  • Handheld Remote Controller
  • Flight Planning and Control Software for Autonomous Flight
  • Custom Hard-Shell Carrying Case (Optional – select as an add-on)
  • 1 Flight Battery and Rapid Charger – 4 Cell, 8.0 Ah LiPo
  • Online Operations Manual
  • Online Tutorial Videos

Additional information

Standard Package: With or Without Carry Case

E386 without case, E386 with case ($600USD)
